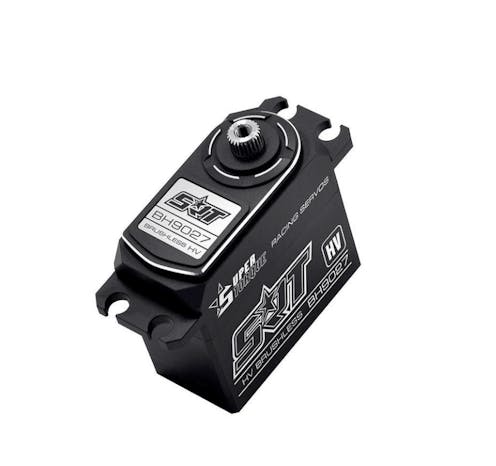

#SRT-BH9027 - SRT BH9027 HV BL Servo 21KG - 0.10 sec at 6v - Metal Case

SRT
Code: SRT-BH9027
£99.75
RRP £105.00
Save £5.25

Description

KEY FEATURES

  • Ideal for 1/8 on road and 1/8 off road scale applications
  • Superior Holding Torque
  • incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • NMB dual main bearings
  • 25T output shaft
  • HD 4096 Resolution
  • 2 μsec Dead Band
  • 1-Year Limited Warranty



PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Titanium & Alu
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.10 sec/60 degrees at no load
  • operating speed (7.4v): 0.08 sec/60 degrees at no load
  • operating speed (8.4v): 0.075 sec/60 degrees at no load
  • stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
  • stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
  • stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
  • weight: 70.0g (2.47 oz)
  • connector wire length: jr 250 mm

Specification

Brand > Models
SRT
Is Radio/Servo
Yes
Radio / Servo Type
SERVOS, SRT SERVOS,
