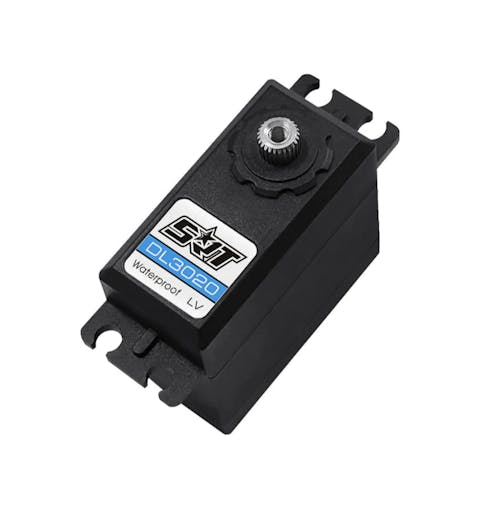

#SRT-DL3020 - SRT DL3020 Servo 20KG - 0.11 at 6v

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
• incredible efficiency and low power consumption
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Copper & Aluminum
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.13 sec/60 degrees at no load
• operating speed (6.0v): 0.11 sec/60 degrees at no load
• stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
• stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
• weight: 56.0g (1.98 oz)
• connector wire length: jr 290 mm
