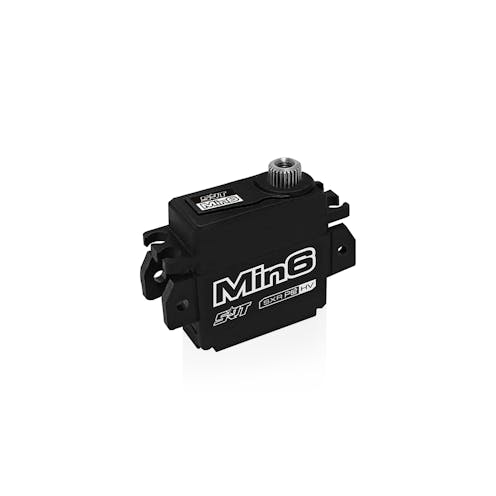

#SRTMIN6 - SRT MIN6 1/12 PANCAR HV CORELESS SERVO
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
- Special 1/12 pancar servo
- Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: 7075 Aluminum
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc4.8-8.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.100 sec/60 degrees at no load
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.070 sec/60 degrees at no load
operating speed (8.4v): 0.062 sec/60 degrees at no load
stall torque (4.8v): 5.0kg.cm (69.4 oz/in)
stall torque (6.0v): 6.8kg.cm (94.4 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive
dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
weight: 18.0g (0.63 oz)
connector wire length: jr 170 mm
Specification
Brand > Models | SRT |
|---|---|
Is Radio/Servo | Yes |
Radio / Servo Type | SERVOS, SRT SERVOS, |
