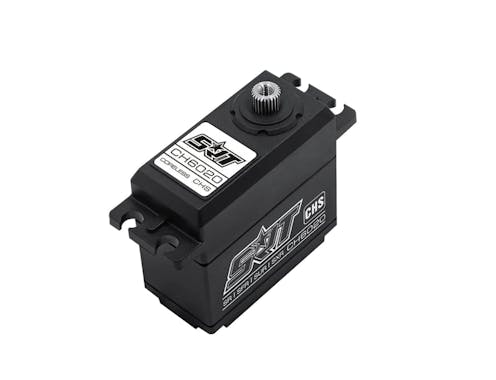

#SRT-CH6020 - SRT CH6020 SERVO 20KG - 0.09 AT 8.4V SEMI METAL CASE

Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
incredible efficiency and low power consumption
Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
2 μsec Dead Band
1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.12 sec/60 degrees at no load
• operating speed (7.4v): 0.10 sec/60 degrees at no load
• operating speed (8.4v): 0.09 sec/60 degrees at no load
• stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
• stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
• stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
• weight: 69.0g (2.43 oz)
• connector wire length: JR 300 mm
