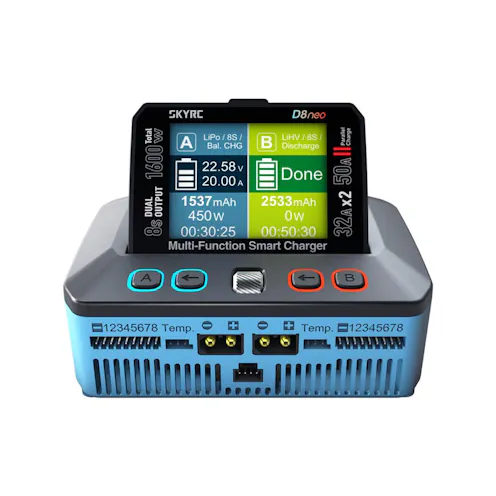

#SK-100230-01 - SKY RC D8NEO MULTI-FUNCTION DC SMART CHARGER

Furious Power.  Up to 32A Per Port.
D8neo unleashes furious charging performance, delivering up to 32A per port with precision and control. Perfect for high-capacity packs and demanding RC sessions, it powers through charge cycles with relentless speed and stability.

Parallel Charging @ 50A  Power Multiplied.
With dual-port parallel charging and a max current of up to 50A, the D8neo delivers unrivaled speed and flexibility.
Enjoy your racing time, the screaming-fast D8neo has your back!
Rise & Shine. Power On!

Outsized Performance. Compact in size, powerful in delivery.
Behind its performance is a high-performance Arm® Cortex®-M 32-bit processing core, keeping charging control precise, responsive, and stable—even during high-power operation.
Serious power, packed into a compact footprint.

Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

Do More With One Charger!nMultiple Chemistries Go.
With exceptional versatility, D8neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
Unlock the full potential of your battery arsenal with D8neo– versatility multiplied capability.

8S Ready More Runtime.
Supporting up to 8S LiPo (29.6V), D8neo delivers serious voltage for demanding RC pros.
Whether you’re flying drones, tearing through water, or pushing large-scale RC cars to the edge, 8S batteries—compact, high-capacity, and built for high discharge rate—charged by D8neo give you the muscle to go further.
Charge harder. Run longer!

Reverse Discharge. Power on the go. Smarter. Greener.
Discharge your battery at up to 1100W—and put that energy to work.
Exclusively between Channels A and B, D8neo transfers unused energy from one battery to another, maximizing efficiency and reducing waste.
Whether at the track, in the pit, or on the move, RC enthusiasts now have a cleaner, smarter, and more flexible way to stay powered up.
A small shift—with a big impact on how you manage energy.

Powered by PSU2000. Designed to Work Together.
When powered by the PSU2000*, capable of delivering up to 1980 W, D8neo unlocks its full performance—providing stable, high-output power for demanding charging sessions.
The muscle behind the power.
* PSU2000 sold separately.

Copiloted by BD380+ Discharge, Elevated.
Battery Health Revealed.
On its own, D8neo delivers a discharge range of 0.2–4 A, ideal for routine maintenance and moderate loads.
When Channel A is paired with the BD380+ Discharger , a massive 40A discharge is unlocked—ideal for high-power packs, aggressive cycling, and pro-grade battery health analysis.
With SkyRC Charger Master, discharge curves can be monitored and exported in real time.
Plot and compare multiple batteries with precision—so weak or defective packs have nowhere to hide.

PD 3.0 @ 100W. Power Anywhere. Anytime.
From powering RC gear to extending playtime on Nintendo Switch, to charging the latest MacBook Pro, and everything in between, including phones, tablets, and earbuds.
D8neo doubles as your ultimate 100 W PD charger, built to keep up with every moving need.

So. Pro. So is Digital Power
D8neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, D8neo offers a voltage option, from 5.0V to 36.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.3A to 32.0A, with a precision of 0.1A.
This Doul output digital DC power supply provides two independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.

Always at the Right Angle.
The display adjusts up to 90°, keeping essential information in clear view—wherever you place the charger.
A light touch finds the right angle.
No bending. No shifting.
Everything you need, right where you need it.

Peace of mind. Fold After Fold.
Built to SkyRC’s uncompromising performance standards, the fold-down display has completed 10,000 laboratory-grade fold tests.
Every fold is engineered to withstand long-term, high-frequency use—ensuring consistent stability, lasting durability, and confidence every time you open or close it.

Master D8neo. On Your Phone.
Take full control of D8neo with ease. Use the dedicated smartphone app via Bluetooth. Access real-time data, track charging curves, monitor capacity, voltage, and power—all from your screen, wherever you are.

Scroll to Control Designed for Productivity
Engineered for performance, this charger comes with a precision aluminum scroll wheel for a more efficient, stylish charging experience. An exclusive upgrade for RC enthusiasts! Built to SkyRC’s uncompromising performance standards, the fold-down display has completed 10,000 laboratory-grade fold tests.

ColorX: Easy to charge, Easy on the eyes.
Discover the ColorX interface, where ease of use meets visual appeal. Designed for RC enthusiasts, its light cyan and green color scheme enhances focus while adding a fresh, modern touch.
With a responsive Web2.0 menu and smartphone-like icons, the interface delivers an intuitive, fluid user experience.
Function meets fun in a whole new way to charge!

Dual Fans. Charge It Cool
A dual-fan cooling system keeps temperatures under control even during high-power operation. Intelligent fan management dynamically adjusts airflow for efficient heat dissipation and stable performance.

Engineered for Safety Multiple safety protections ensure the secure operation.

Short-circuit
Protection

Over-temperature
Protection

Capacity
Protection

Time-out
Protection

Reverse Polarity
Safeguard

Cut-off
Protection

Over-voltage
Protection

Flame-retardant
Chassis

Charge in your language
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.

Specifications
Size and Weight

Case Size: 131x98x46.5mm
Weight: 530g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
Input：9-49V

Charge Power:
Single Channel: 1100W
Multi-channels: 1600W in total (A+B+DC Power+Type-C)

Discharge Power:
Main Port: 45W
Balance Port: 20W Max (LiPo/8s)
Reverse Discharge Power: 1100W
Battery Types/Cells:
LiPo/LiFe/Li-ion/LiHV: 1-8S
NiMH/NiCd: 1-20S
Pb: 3S/6S/12S
Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV(2~8S): 0.1A ~ 32.0A
LiPo/LiFe/Li-ion/LiHV(1S) / NiMH/NiCd: 0.1A ~ 10.0A
Pb: 0.1 ~ 15.0A

Parallel charge
LiPo/LiFe/Li-ion/LiHV(2~8S): 33.0A ~ 50.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 4.0A

External discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.5A~40A

Balance current
LiPo/LiFe/Li-ion/LiHV: Max. 1.9A
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
