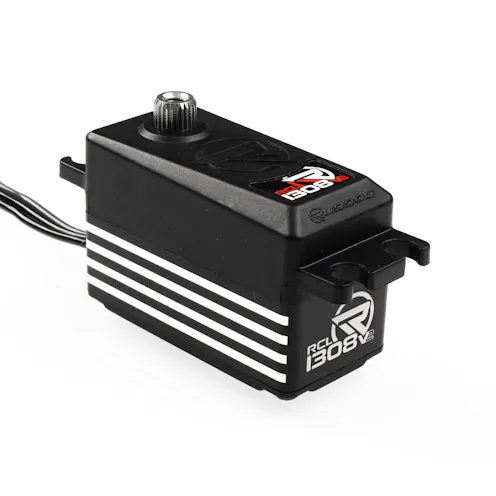

#RP-0902 - RUDDOG RCL1308V2 HV Low-Profile Coreless Servo (0.08s|13.2kg)

The proven RUDDOG RCL1308 enters its next generation: Discover the new RUDDOG RCL1308V2 HV Low-Profile Coreless Servo. Version 2 combines the outstanding and proven performance specs of its predecessor with a fresh, updated look and further improved durability for the toughest RC racing applications.

Still uncompromisingly designed for demanding competitions, the V2 continues to impress with its lightweight plastic case supported by a sturdy aluminum middle section. The powerful coreless motor guarantees lightning-fast response times and extremely high efficiency. Thanks to its increased robustness, the servo reliably delivers precise movements and excellent torque even in the most intense racing situations – ensuring you always maintain full control on the track.

Features

• Case: Combined plastic case with a central aluminum section (V2 Design)

• Spline: 25T

• Dimensions: 40.8 x 20.3 x 26.9 mm

• Weight: 43.0 g

• Speed: 0.101s @6.0V | 0.088s @7.4V | 0.081s @8.4V

• Torque: 11.7kg @6.0V | 13.2kg @7.4V | 14.1kg @8.4V

• Voltage Range: 4.8 - 8.4V

• Motor Type: Coreless

• Gear Type: Metal

• Wire Length: 100 mm

Scope of Delivery

• 1x RUDDOG RCL1308V2 Servo

• 4x Mounting screws

• 1x 100mm extension wire
