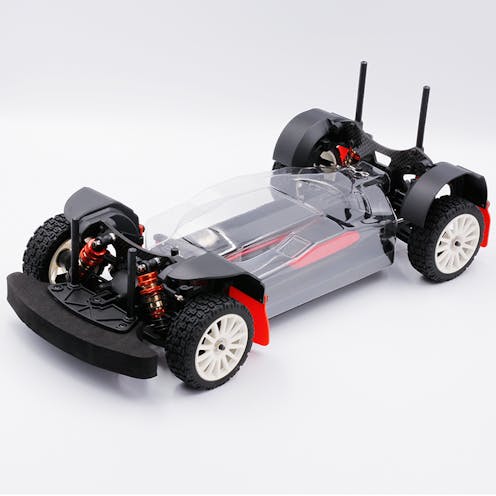

#LC-PTG2R001 - LC Racing - PTG-2R - 1/10th 4wd Prospec rally car kit (no body)

LC Racing PTG-2R 4wd 1/10th ProSpec off road rally car unassembled kit DESCRIPTION

The ultra-high-strength metal geared shaft transmission system is at the heart of the PTG-2R, all-metal construction from the aluminium centre shaft through to the steel crown and pion gears and internal small bevel gears/differential planetary gears. These professional spec competition gear differentials, provide transmission system durability beyond imagination. The large-capacity and long-stroke aluminium oil filled adjustable shock absorbers, and the 10mm large-diameter and long-stroke are optimized for super silky smooth suspension and bump handling. The overall height of the car can reach 22~25mm if required for even the most extreme rally terrain. Fully ballraced throughout, CVD driveshafts and high-strength spring steel hinge pins front and rear. Aluminium 6061 alloy chassis at the base, complete with a kick-up front design, optimized for performance. The newly designed suspension assembly, new steering block and front/rear hubs are in an new material providing super durability. The steering system is also designed with a built-in servo saver mechanism optimized for tension whilst protecting your steering servo Quick access to the front and rear gearboxes, which are easy to disassemble and assemble, which saves valuable maintenance time and more time on the rally course!! The equipment needed to be purchased separately is all compatible with standard 1/10 equipment. It is recommended to use a low profile servo (but a standard servo can be used). The gear pitch is 48dp with a standard 3.175MM shaft diameter/24T. It is recommended to use a 540 size motor (no more than 3652 size). Transmitter, receiver, electronic speed controller, rally bodyshell, suitable battery pack and charger also all required

In addition to the standard PTG-2 kit the "R" spec includes the following option parts

• Front and rear 3mm carbon fibre shocks towers
• 7075-T6 aluminium adjustable motor mount
• Grade 12.9 hex head screws throughout
• Carbon fibre and aluminium floating steering servo mount
• Complete authentic mud guard and mad flaps set

KEY FEATURES

* Ultra high strength metal geared shaft transmission system
* All metal oil filled geared differentials front and rear
* Large capacity, long stroke 10mm aluminium threaded shock absorbers
* Ride height adjustable to 25mm
* Metal CV driveshafts all round
* Aluminium main centre driveshaft
* Fully ballraced throughout
* 6061 Aluminium main lower chassis
* Upper arm turnbuckles - front and rear
* Fully adjustable toe in, anti squat and kick up
* Easy access gearboxs
* Quick release battery retainer strap
* Motor mount and built in spur/pinion cover
* 12mm wheel hexs
* Adjustable spring steel arm mounts
* Clear polycarbonate chassis inner mud cover
* Front foam bumper
* Removeable ESC tray


SPECIFICATIONS

Scale: 1/10th Wheelbase: 257mm - Length: 370mm - Width: 185mm Tire Type: LC Racing rally tires pre-mounted Chassis: 2.0mm 6061 anodized aluminium Gear ratio: 2.5:1 Shock Type: Aluminium-threaded, oil-filled, coil-over, 6061-T6 adjustable Ball bearings: Complete

INCLUDED IN THE BOX

1 x 1:10th PTG-2R 4wd RC Car kit

1 x Instruction Manual

Required to complete

 540-size electric motor Electronic Speed Controller 7.2v NIMH or 7.4v LIPO Battery pack and charger 2-channel transmitter & receiver Steering servo 1/10 Rally Car Body
