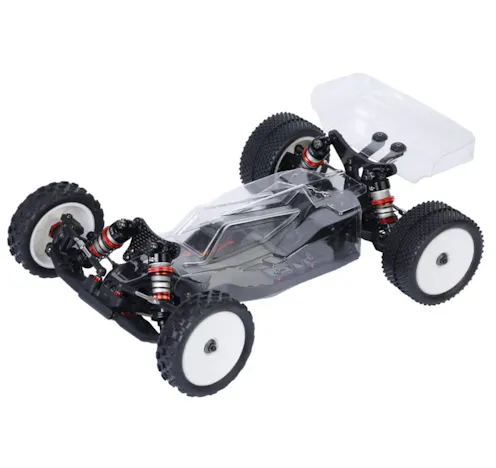

#LC-BHC-1V2KIT - BHC-1 V2 - 1/14TH 2WD MINI MID-MOTOR BUGGY '26 SPEC KIT

LC Racing BHC-1 V2, is an all new 1/14th scale, self assembly buggy kit with a 2WD mid motor drivetrain. Reliable performance for great fun and excitement

This is supplied as a kit that requires full assembly.

Introduced in 2023, the original LC Racing BHC-1 buggy has shaken up the small scale 2WD world with an optimized mid-motor platform built from the ground up for success. The BHC series offers the most competitive 1/14 scale 2WD options today, without breaking the budget.

• Batan D132F digital micro servo
• Oil-filled aluminum adjustable coilover shocks
• Oil-filled metal gear differential
• CVA driveshafts
• Adjustable slipper clutch
• Carbon fiber shock towers
• 7075-T6 aluminum motor mount
• 21T pinion
• Steel hinge pins
• 2.0 mm anodized aluminum chassis with front kick-up
• Pre-mounted LC carpet/astroturf wheels/tires
• Aluminum 12 mm wheel hexes
• Polycarbonate pre-cut buggy body (clear)

New V2 spec updates:

• Emulsion shocks featuring 7075 Aluminium bleeder caps
• Smoother 60deg silicone shock shaft o-rings (incl. option to use 1 or 2 o-rings)
• Carbon fiber quick release battery holder
• More rigid, better fitting V2 gearbox
• Sleek low profile tweaked bodyshell for improved high speed grip and steering response
• Steel M3 Turnbuckles now have 4 mm wrench flats for adjusting
• Updated 3.0mm carbon shock towers front and rear
• Red alloy +2mm camber link mounts for improved geometry

SPECIFICATIONS:

Scale: 1/14
Width: 190mm
Wheelbase: 210mm
Chassis: 2.0mm anodized aluminum
Gear ratio: 2.5:1
Ball bearings: Fully ball raced
Body: Unpainted

You will need:

• Transmitter and Receiver
• ESC and Brushless Motor
• Battery 70x36mm Lipo and Charger
• Gear Differential Oil
• Shock Oil
• Assembly tools
• Paint for lexan/polycarbonate body

Recommended Brushless Motors:

Sensorless LCE008, LCE009, LCE010, LCE011, LCE014,
Sensored LCE013, LCE015, LCE018, LCE019
