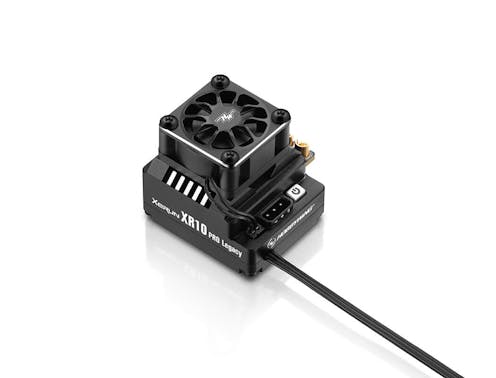

#HW30112800 - HOBBYWING XERUN XR10 PRO LEGACY SPEED CONTROL - BLACK

Legendary Design, Proven Performance, Amazing Value

Built-in Reverse Polarity Protection
Equipped with a built-in reverse polarity protection circuit, the ESC offers worry-free operation by preventing damage from incorrect battery connections, ensuring reliability and peace of mind every time you power up.
Note: Full reverse polarity protection of the entire power system can only be achieved when using the optional non-polarized capacitor. The standard ESC is equipped with capacitor that is not protected against reverse polarity. If the battery is connected incorrectly, the capacitor may be damaged; however, the
ESC itself will not be affected.

Competition-Ready, Driven by a Powerful Core
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimization and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Smart Fan Circuitry
The Legacy now includes Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance. The intelligent fan start-stop function can be disabled through parameter settings.

Built-in BEC Supporting High-Voltage Servos
Built-in 10A switch-mode BEC with adjustable voltage from 5.0V to 7.4V (0.1V steps), delivering power and precision demanded by high-torque and high-voltage servos.

Softening Function for Enhanced Control
Updated to include HOBBYWING's patended Softening, the Legacy now includes a useful tool for tuning tricky track conditions.

External OTA Makes Parameter Tuning and Firmware Upgrades More Convenient
Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone. Using the mobile app, you will effortlessly adjust parameters, read data, and upgrade firmware improving quality of life.

Real-time Data Logging Function for Easy Access to Power System Status
Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.
Due to Bluetooth transmission limits, the effective range is approximately 5 meters.

Designed for All Forms of Racing
Built on the stable and powerful XR10 Pro series platform, this ESC is perfect for 1/10th on-road and off-road racing across both Modified and Stock classes.

Specifications
Cont./Peak Current: 150A/1000A
LiPo Cells: 2S LiPo
BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
Cooling Fan: Powered by the stable BEC voltage
Motor Limit: Touring Car：4.5T, Buggy：5.5T, 3650(540)size 2-pole motor
Size: 37.7×37.0×33.2mm (w/Fan&Fan Shroud)
Weight: 94.2g (w/Wires)
Programming Port: Independent programming interface
Reverse Polarity Protection: Yes
Applications: 1/10th Touring car & Buggy racing, 1/10th Drift, F1, Rally
