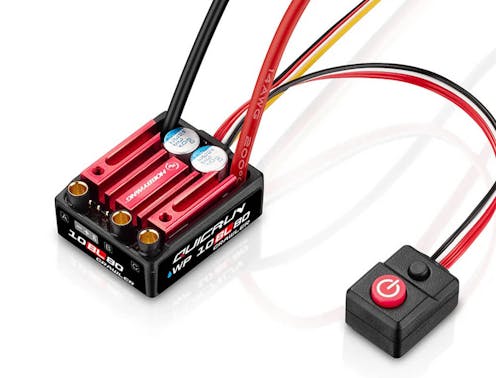

#HW30108002 - HOBBYWING QUICRUN WP 10BL80 CRAWLER ESC

HOBBYWING QUICRUN WP 10BL80 CRAWLER ESC

FEATURES

• Supports Sensorless Brushless motors & Brushed Motors.
• Compatible with most brushed or brushless motors on the market.
• Fully waterproof design for all conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
• Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
• It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.

SPECIFICATIONS

Scale: 1/10th Brushed/Brushless: Brushless Sensored/Sensorless: Sensorless Waterproof: Yes Cont./Peak Current: 80A/240A Input Voltage: 2-4S LiPo BEC Output: 6V/7.4V/8.4V,5A Input Wires: Black-14AWG-175mm*1,Red-14AWG-175mm*1 Output Wires: No Input Connectors: XT60 Output Connectors: 3.5MM Gold (female) ESC Programing via:  SET Button on ESC: Supported LED Program Box: Supported LCD G2 Program Box: Supported LCD PRO: Supported OTA Programmer: Not Supported Program Port: Independent program port Data Recording:  Extreme value: Not Supported Real-time Data: Not Supported Historical data (Graph): Not Supported Firmware: Firmware Upgrade: Not Supported Size: 36*30*15.5mm Weight: 47.8g( Included wires & connectors) Applications: Motors: Sensorless / Sensored Brushless Motor Vehicles: 1/10th Crawlers KV Rating/T Count: Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
