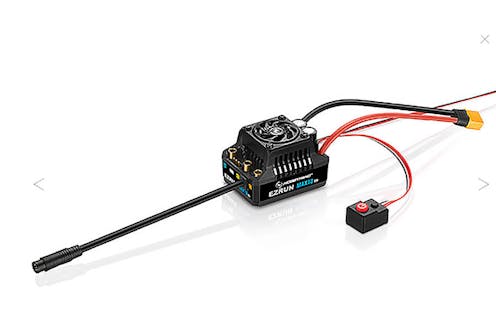

#HW30102603 - HOBBYWING EZRUN MAX10 G2 140A SPEED CONTROL
Description
HOBBYWING EZRUN MAX10 G2 140A SPEED CONTROL
SPECIFICATIONS
Type Scale: 1/10th Brushed/Brushless: BL Sensored/Sensorless: SD Waterproof: Waterproof Specifications Cont./Peak Current: 140A/880A Input Voltage: 2-4S LiPo BEC Output: 6/7.4V, 5A Wires & Connectors Input Wires: Red-12AWG*1 Black-12AWG-150mm*1 Output Wires: Input Connectors: XT60 Output Connectors: 4.0mm Gold (Female) Fan Size: 30x30x10mm Output Wires: 5-7.4V Input Connectors: Powered by BEC Esc Programming Via SET Button on ESC: No LED Program Box: Supported LCD Program Box: Supported (G2) OTA Programmer: Supported Programming Port: Separate Firmware Firmware Upgrade: Supported Size & Weight Size: 53mm*39.5mm*37.2mm Weight: 120g(w/Wires) Applications Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th Short Course Truck, Truck and Monster Truck KV Rating / T Count: With 3S LiPo: KV<4000 3665 Size Motor, With 4S LiPo: KV<2600 4268 Size Motor
Specification
|
Brand > Models
|
HOBBYWING
|
|---|---|
|
Is Electrics
|
Yes
|
|
Electrics Type
|
ESC MOTOR COMBO, HOBBYWING ESC MOTOR COMBO,
|
