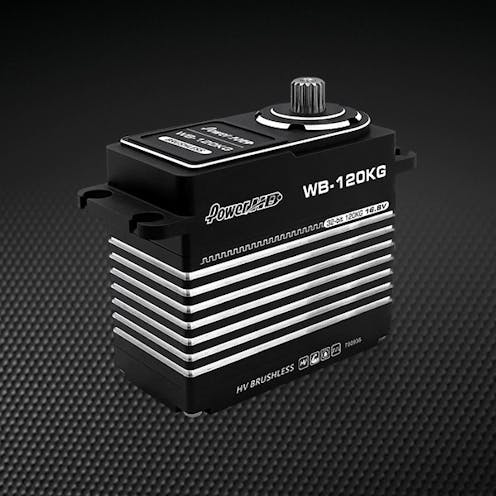

#HD-WB-120KG - POWER HD SERVO WB-120KG 12.6V ALU CASE MG 120KG/0.10S (LARGE SCALE)
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(12.6V): 80.0 kg-cm / ( 1111.0 oz/in )
Torque(14.8V): 98.0 kg-cm / ( 1360.9 oz/in )
Torque(16.8V): 120.0 kg-cm / ( 1666.5 oz/in )
Speed: 0.14 sec (12.6V) │ 0.12 sec (14.8V) │
Speed: 0.10 sec (16.8V)
Operating Voltage：12.6 ~ 16.8 DC Volts
Weight: 212 g (7.48 oz)
Horn gear spline: 15T
Motor Type: Brushless Motor
Gear Type：Steel
Max current: 8A
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：59.5 x 29.5 x 54.4 mm ( 2.34 x 1.16 x 2.14 in)
Specification
Brand > Models | POWER HD |
|---|---|
Is Radio/Servo | Yes |
Radio / Servo Type | SERVOS, POWER HD SERVOS, |
