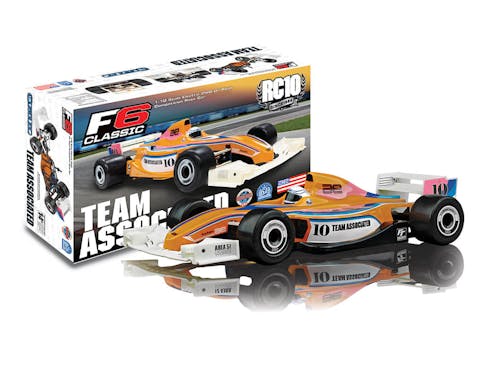

#AS8024 - TEAM ASSOCIATED RC10F6 CLASSIC 2025 EDITION KIT

FEATURES

• Anodised gold chassis.
• Front and rear wings modeled after Formula rules included.
• FOX® Genuine Kashima Coat center shock for minimal friction and extended wear.
• Chassis design allows for multiple battery configurations.
• New center pivot design for optimized rear pod assembly.
• Lightweight graphite axle for increased durability and rigidity.
• Differential thrust bearing assembly for smooth action and extended life between rebuilds.
• Rear axle accepts all standard spur gears without adapter.
• Two steering bellcrank options for fine tuning Ackermann and steering rate.
• Servo mounts can be switched from “fixed” to “floating” to allow more flex in the front of the chassis.
• Integrated droop posts for adjusting droop without disassembly.
• New F1 style front and rear wheels with wheel decals.
• New Belted Medium wear High grip front and rear F1 Tyres included.
• Formula 1 accurate clear lexan body with RC10 classic livery included.

SPECIFICATIONS

Power Source: Electric Terrain: On-Road Body Style: F1 Scale Size: 1:10 Scale Assembly Level: Kit* Length: 432.5mm (17.03in) Width: Varies Wheelbase: Varies Weight: 345g (0.76lbs) Internal Gear Ratio: 1:1 Drive: 2WD

*This vehicle comes as a kit and must be fully assembled by the user.

NEEDED TO COMPLETE

• Kit only: All electronics are required.
• Four AA batteries for radio.
• Suitable NiMh or 2S/3S LiPo battery for vehicle, and a charger.
• ESC Speed Control.
• Steering Servo.
• Motor.
• Transmitter and receiver.

OTHER USEFUL ITEMS

• Body Scissors (AE Part AS1737).
• Reamer / Hole Punch.
• FT Wrench Set (AE Part AS1519).
• Hobby Knife.
• Needle Nose Pliers.
• Wire Cutters.
• Soldering Iron.
• Calipers or a Precision Ruler.
• Lexan paint for the body.
• Glue for the tyres.
