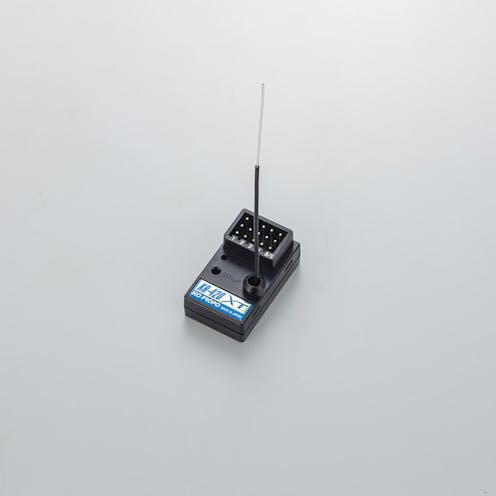

#KO21014 - Ko Propo KR-420XT 2.4 Receiver For EX-NEXT Only

The EX-NEXT is equipped with "XT" that is progressed more from "FHSS" in combination with the KR-420XT. You can choose RF mode from XT advanced mode which is fastest response in the world by one way communications and 'XT telemetry mode' which is supported telemetry(two ways communications).

Specfications

- Dimentions:30.9×18.4×13.5mm
- Weight:5.4ｇ
- Operation Voltage: 4.8～7.4V
- Frequency: 2.4GHz（XT）
- Number of Channel: PWM 4CH、Serial 8ID
- Black shild antenna
- Gold-plated terminals
- Telemetry compatible
- Serial control compatible
- HCS compatible
- Fail safe function equipped

Compatible models
EX-NEXT
*It cannot be used with EX-LDT/EX-RR/EX-2.

You can feel most fastest response by EX-NEXT and KR-420XT.
*The telemetry function can only use with our serial compatible products and receiver's power voltage.

Ultra small dimensions case

At the ultra-compact receiver KR-420XT, which is equipped with the latest devices abundantly as like EX-NEXT, While maintaining the same occupied area as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller than before. Connecting port for servo or ESC are equipped total 5 port.Also, not connected port can be use to power supply for cooling fan and transmit ponder for lap count system.

Can install antenna pipe to receiver case directly.

KR-420XT has function that can install antenna pipe to receiver case directly as same as KR-415FHDr, which has been very well received. The floor area is the same as the conventional model KR-418FH, but you can save the trouble of installing the antenna mount.
