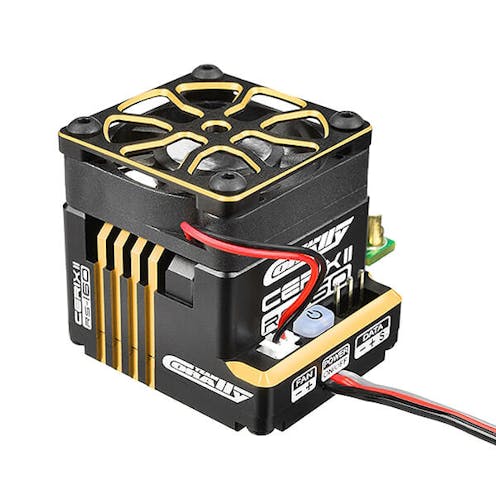

#C-53014 - CORALLY CERIX II RS-160 RACING FACTORY 2-3S ESC 160A BLK/GOLD
Fast Delivery
We deliver world wide. Depending on your location, at checkout you may be offered with a choice of delivery methods.
For UK Mainland England, Wales, Scotland (Excluding Highlands) & IOW, DPD Delivery is Free on orders over £100*
Description
The Team Corally CERIX II RS-160 "RACING FACTORY" electronic speed controller for sensored and sensorless motors is being fine tuned for the today's high power brushless motors. Everything can be set-up on these controllers to provide you the best functionality and performance.
The CERIX II RS-160 "RACING FACTORY" is manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimised performance. The CERIX II RS-160 "RACING FACTORY" controller give the 1/10 On-Road and 1/10 Off-Road competition racer what he needs. You will experience the best controllability of your 1/10 Racing Cars, no matter you use it with Spec or Modified motors
FEATURES
- For sensored and sensorless motors
- Manufactured with the highest grade components
- Ultra compact design
- Aluminum case for improved heat dissipation
- Built in Capacitors
- Built in power switch
- Advanced boost and turbo timing system for improved acceleration performance
- Enhanced throttle and brake control function.
- 10 programmed profiles can be stored in the ESC
- Adjustable BEC voltage 6.0V 5A or 7.4V 5A Current
- Powerful TC Link software to test motor timing and advise the best ESC timing setting
PROGRAMMING FEATURES
General Settings
- Running Mode
- Cut-off Voltage
- Overheat protection
- Motor Rotation
- Reverse Speed
Throttle Control
- Dead Band
- Punch Rate SW- Point
- Punch Rate 1
- Punch Rate 2
- Throttle Curve
Brake Control
- Initial Brake
- Drag Brake
- Brake Strength
- Brake Rate Control
- Brake Curve
Boost Function
- Boost Timing
- Start RPM
- End RPM
- Boost Constraint
- Boost Slope
Turbo Timing
- Turbo Timing
- Activation Method
- Turbo Delay
- Start RPM
- Turbo Slope
POWER SPECIFICATIONS
Application: 1/10 Touring - 1/10 Pan Car - 1/10 Off-Road - Crawlers Cont. Current (A): 160A Burst (A): 800A Nr of Li-xx Cells: 2 - 3S BEC: 6V 5A or 7.4V 5A Motor Type: Sensored - Sensorless Motor Limits: 2S Li-Po => 3.5T o 1/10 On-Road => 5.5T o 1/10 Off-Road 3S Li-Po => 5.5T o 1/10 On-Road => 8.5T o 1/10 Off-Road Resistance: 0.00018 ohm Dimensions: 37x33x22mm (30mm Fan) Weight: 43g (51g Fan)
